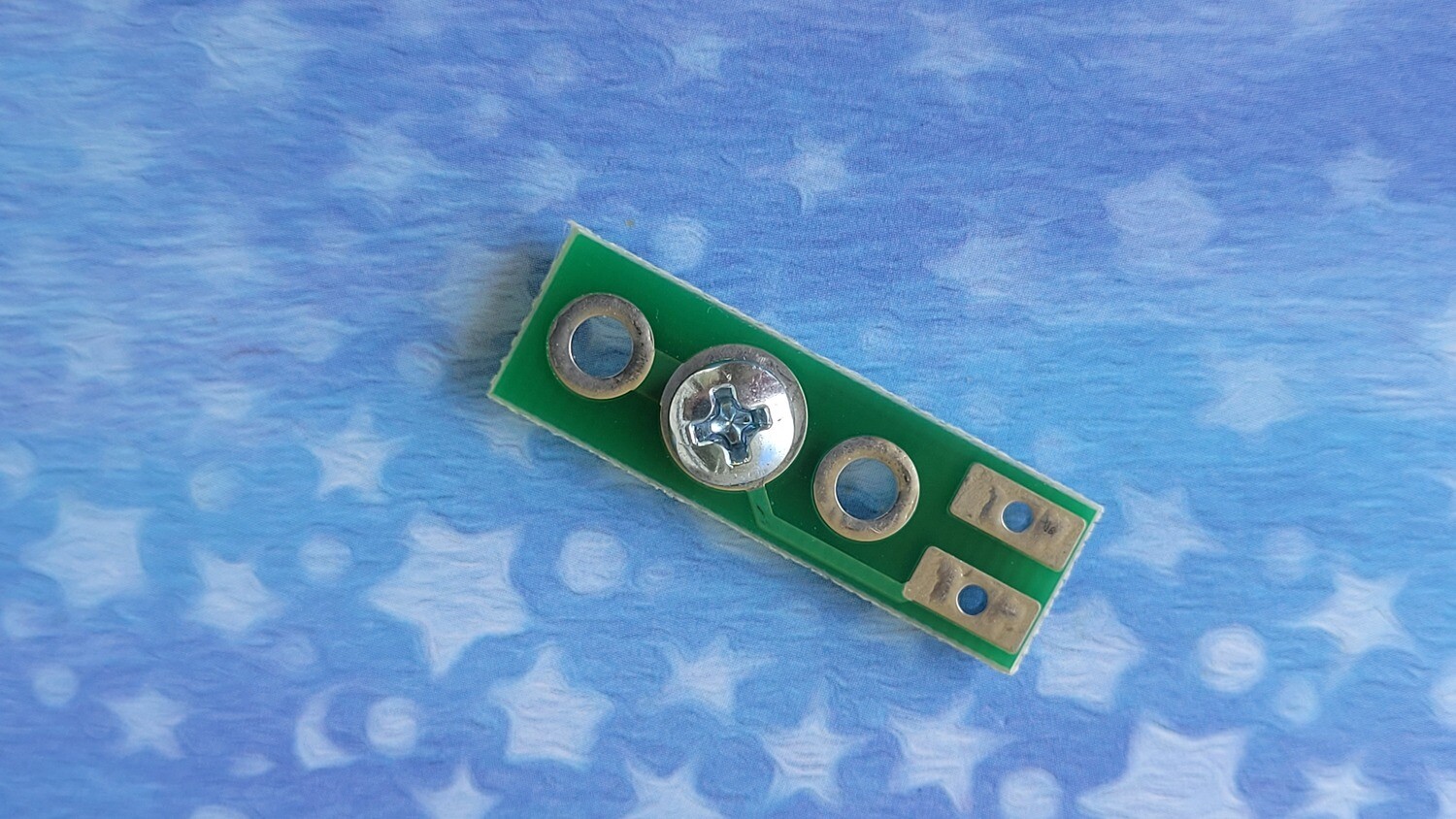

The MOST VERSATILE
Screw-Switch for HPR!

Features:
Extremely Robust 0.093" FR4 PCB (0.16" depth)
6-32 PEM nut is 100% annular reflow soldered
4-40 plated mounting holes can function as switch contacts
Also supports hard-wiring or 5mm compression-terminals*
Supplied with 6-32 x 3/16" panhead phillips screw
Practically sized fastening and operations

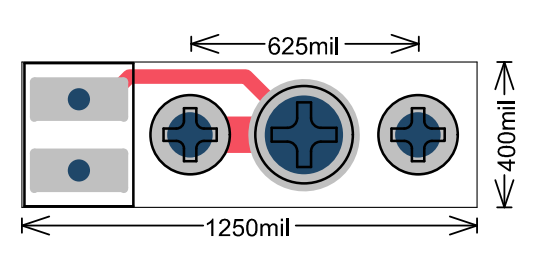

Dimensions:
1.25" x 0.4" x 0.093
