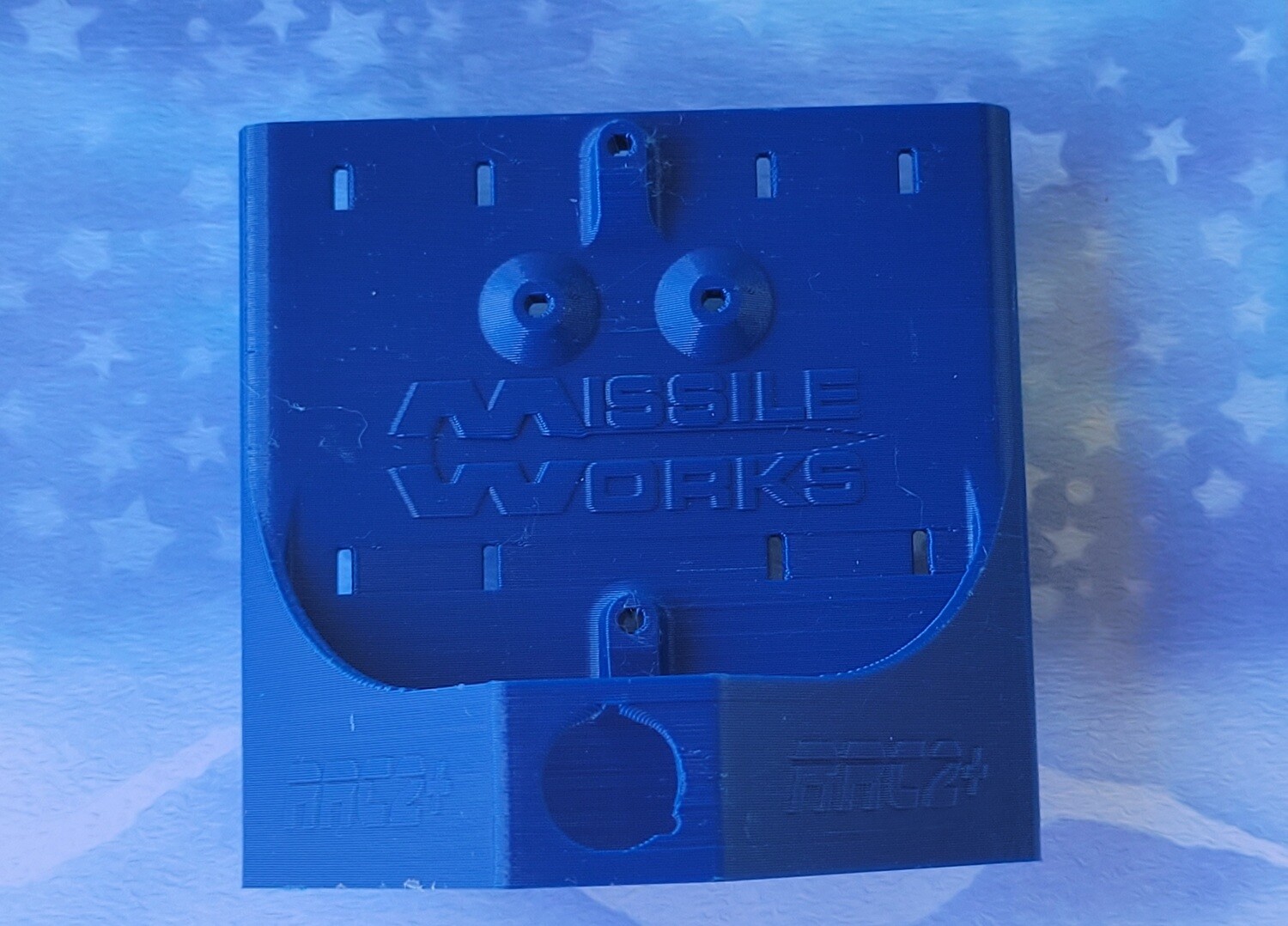

This Pre-Engineered, 3D printed Avionics Bay Sled System comes ready for quick assembly and integration into your rocket project.

Features:
· Integrated 9V battery holder.
· Easy battery removal/change.
· SW-2 "Rotary Switch" mount.
· Rotary head is located for easy "vent hole" access on the pad.
· Modular design allows sled to be moved from rocket to rocket easily.
· Pre-slotted for easy wire routing or tie-wrap attachments.
· Precision printed from durable and environmentally friendly PETG plastic.

Details:

- Weight: with screws and battery cover ~ 45g.
- Dimensions: 3.125" long x 3.4" wide x 1.55" deep.
- Mounting: (2x) 1/4-20 all-thread on 3" centers.
- Comes with (4) #4 trilobular screws and battery cover.
