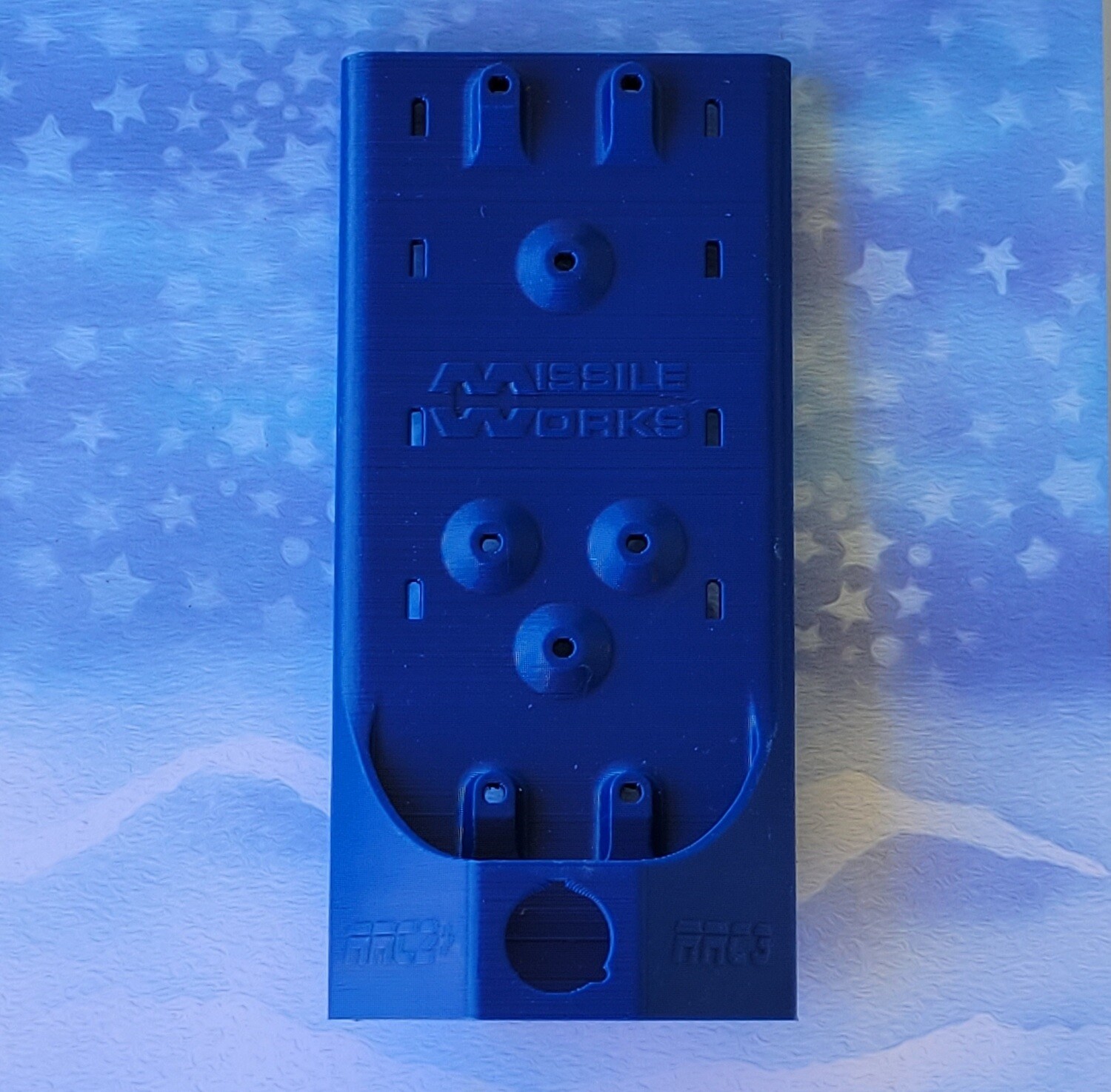

This Pre-Engineered, 3D printed Avionics Bay Sled System comes ready for quick assembly and integration into your rocket project.

Features:
· Integrated 9V battery holder.
· Easy battery removal/change.
· SW-2 "Rotary Switch" mount.
· Rotary head is located for easy "vent hole" access on the pad.
· Modular design allows sled to be moved from rocket to rocket easily.
· Pre-slotted for easy wire routing or tie-wrap attachments.
· Precision printed from durable and environmentally friendly PETG plastic.
· 2" center mounting bosses for RRC2-mini or PET2+ timer.
· RRC2+ mountable on 2" bosses with 1/8" standoffs.

Specs:
- Weight: with screws and battery cover ~ 56g.
- Dimensions: 5" long x 2.4" wide x 1.55" deep.
- Mounting: (2x) 1/4-20 all-thread with 2" between rods.
- Comes with (6) #4 trilobular screws and battery cover.
