(NOTE: This T3 Base Box is not compatible with the new T3-LX version)

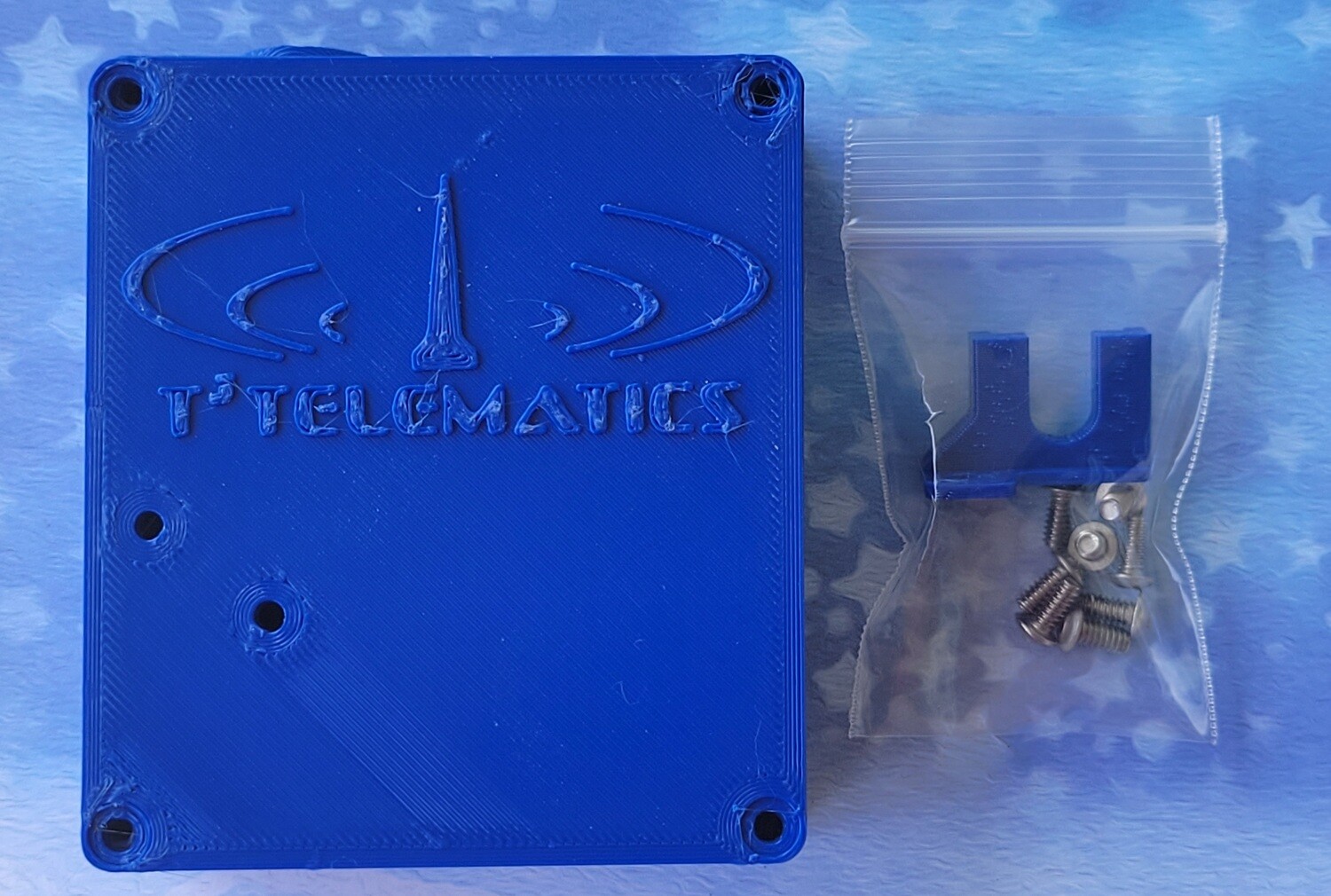

The T3 Base Box Housing is another perfect compliment for the T3 GPS Tracking System. This Pre-Engineered, 3D-printed Housing comes ready for quick assembly and eliminates the fuss and fiddle factor in fabricating and construction of a base box for your system.

The T3 Base Box Drops easily into your shirt pocket, or clip the box to a belt loop or lanyard. If you really want a slick mount, you can use a universal cell phone mount so your base unit is integrally attached to your cell phone (available as an option).

The T3 Base Box Housing is printed from durable, high-performance PETG filament which has a higher melting temperature than our other PLA based sleds and accessories. The design also leverages the popular Turnigy Nanotech 750 mAh LIPO Battery (not included). The design also utilizes our popular Rotary switch for a flush mounted low profile On/Off switch that won't accidentally get shut off.

Features:

· Easy battery attachment via tie-wraps
· Integrated T3 board mounting bosses for 4-40 cap screws
· Includes RPSMA mounting hole for base duck antenna
· Lanyard attachment point anchor hole
· LED Status holes for Radio and Bluetooth

Specs:
- Sled Dimensions: 2.625" Width x 3" Height x 1.125" Depth.
- Includes (6) 4-40 cap screws and 1/4-20 3/8" screw
- Mounting: Lanyard or optional 1/4-20 Universal Android Bracket

Also Recommended:
Turnigy NanoTech 750mAh 3.7V 1S rechargable LIPO battery
https://hobbyking.com/en_us/turnigy-nano-tech-750m...

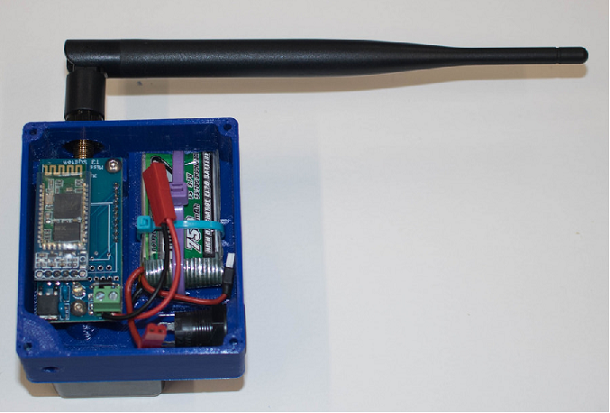

Internals with T3 Box

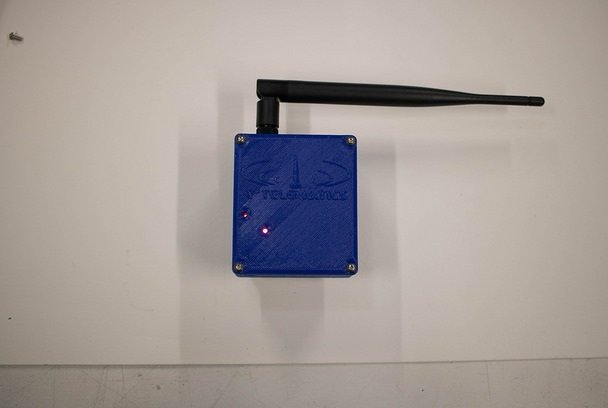

Assembled Box with T3

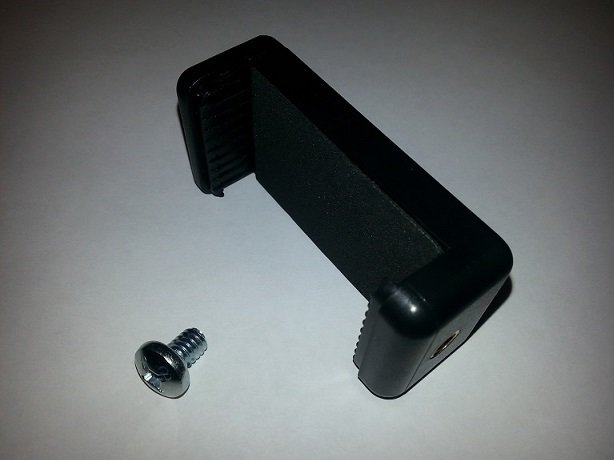

Smart Phone Clip Option

Assembled Box with Smart Phone Clip on phone
