NOTE: This T3 Base Box is not compatible with the new T3-LX version

The T3 Modular Sled System is the perfect compliment for our T3 GPS Tracking System. This Pre-Engineered, 3D-printed Sled System comes ready for quick assembly and easy integration into your rocket project.

Additional options include (pictured below)

- Harness attachable 3D printed sleeve
- Traditional plywood nose cone bulkhead mounting adapter
- 38mm 5:1 VonKarman Nose Cone Mount for Madcow / RW cones

The T3 Modular Sled System is printed from durable, high-performance PETG filament which has a higher melting temperature than our other PLA based sleds and accessories. The design also leverages the popular Turnigy Nanotech 750 mAh LIPO Battery (not included) for a small, lightweight and compact avionics sled. The anchor point for the sled system is designed around the use of 1/4-20 or M6 eyebolts and locknut fasteners (also not included).

Features:
· Easy battery attachment via tie-wraps
· Integrated T3 board mounting bosses for 4-40 cap screws
· Includes RPSMA and Wire-whip cap for antenna stress relief
· Modular design allows sled to be moved from rocket to rocket easily

Specs:
- Weight: ~32 g.
- Sled Dimensions: 4.95" long x 1.21" diameter.
- Includes (6) 4-40 cap screws and RPSMA/Wire-Whip caps
- Mounting: 1/4-20 or M6 eyebolt and locknut (not included)

Also Recommended:
Turnigy NanoTech 750mAh 3.7V 1S rechargable LIPO battery
https://hobbyking.com/en_us/turnigy-nano-tech-750m...

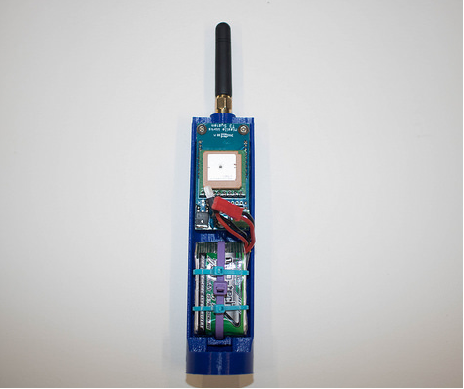

Assembled Sample Sled

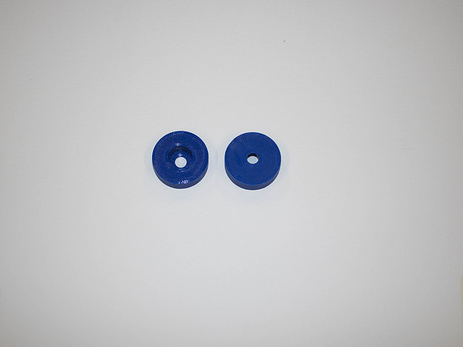

Bulkhead Spacer Mount Option

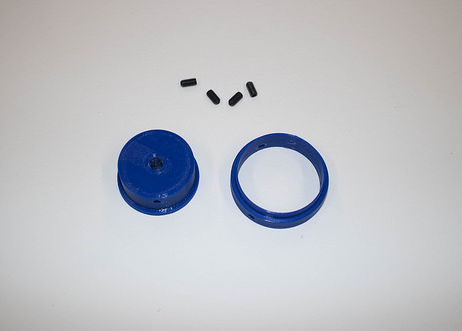

38mm Von Karman Bulkhead adapter and drill guide

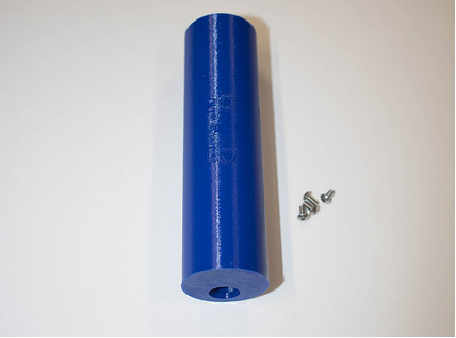

Harness Mounted Sleeve/Housing
