(NOTE: T3-XB systems are not compatible with T3-LX systems)

The T3 Tracker System (Tiny Telematics Tracker) is a simplified and scaled down version of our RTx/GPS system. Even though the T3 system is our lower cost "Buy and Fly" tracker system, it still uses the same proven core components as its big brother RTx, specifically:

- uBlox7 GPS Engine
- 1/4 watt License Free XBee Radio Modems
- HC-06 Bluetooth Module

The T3 system relies on a Bluetooth ready Android device or Windows PC HMI (Human Machine Interface) and uses any NMEA/Bluetooth/Serial data stream capable app to provide Lat/Lon coordinates. If your HMI has integral GPS capability it can also assist with navigation to the landing coordinates.

Android apps include: Blue GPS / Rocket Track / Rocket Locator
Windows PC apps include: uCenter / VisualGPS (Lat/Lon display only)

Your XBee radios come pre-configured for private networking and interference-free operation as we manage all radio network ID's just like we do for our RTx systems. The Rocket transmitter board can be ordered with an integral 1/4 wave wire-whip or an RPSMA connector for use with an externally mounted antenna (purchased separately). Additional Rocket transmitter boards can also be purchased separately for a multi-rocket T3 System.

Your T3 System includes:

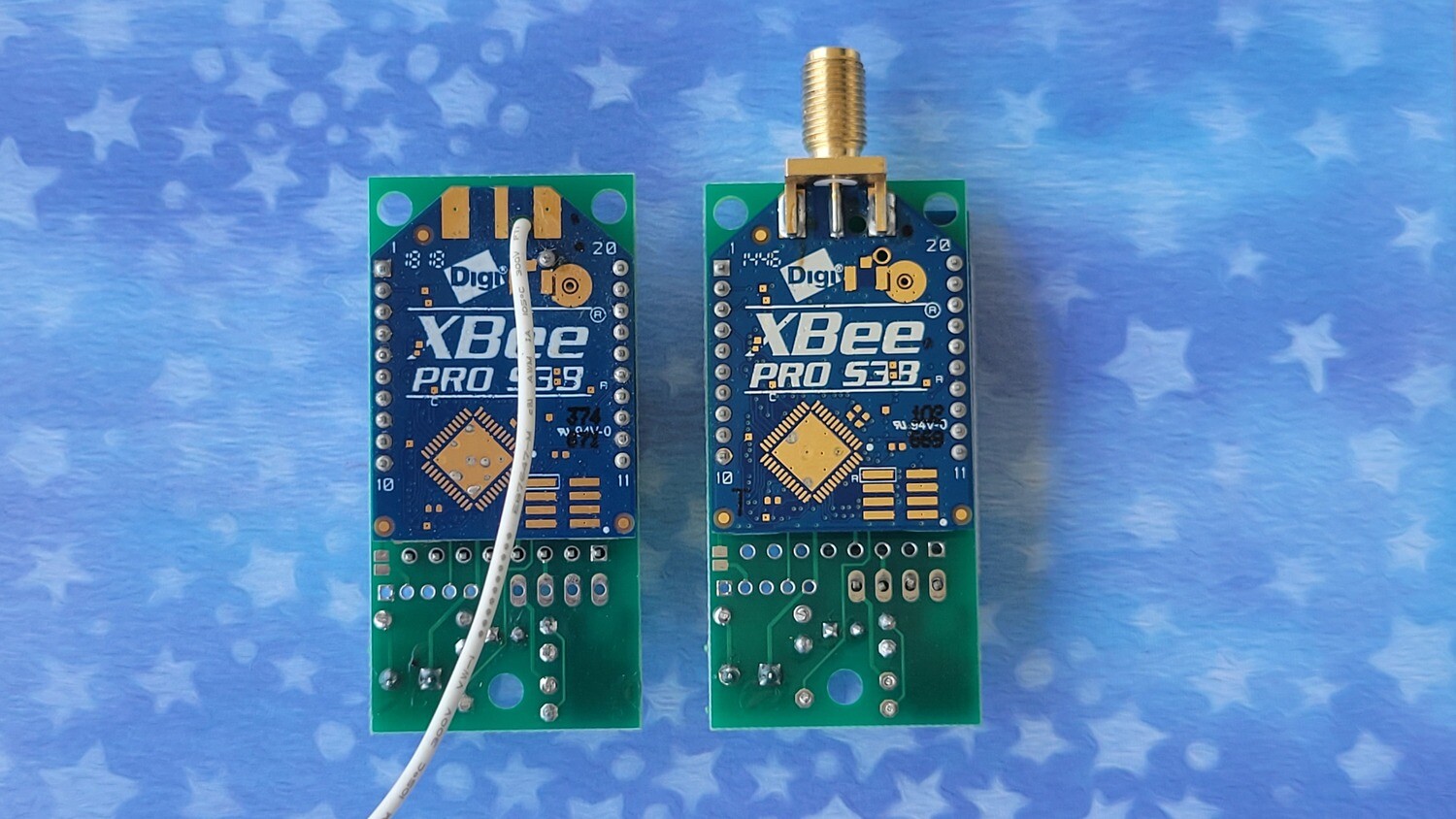

· BOTH boards pictured (Rocket and Base board)

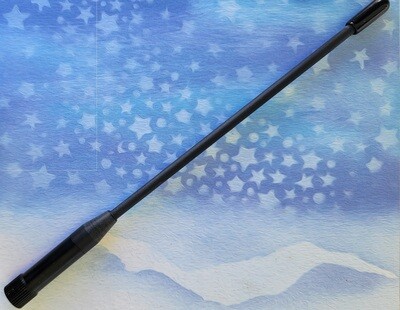

· RPSMA antenna connector for the Base Board WITH AN ADJUSTABLE 1/2 BASE ANTENNA.

Notice: T3 Systems are custom built and provisioned to order!
Please allow at minimum of at least ONE-WEEK lead time in order to fabricate and fulfill your system purchase.
